E370 Quad Morphing VCO

Quad Morphing VCO

Kickstarter campaign: https://www.kickstarter.com/projects/697230891/e370-quad-morphing-vco (succeeded; preorders available)

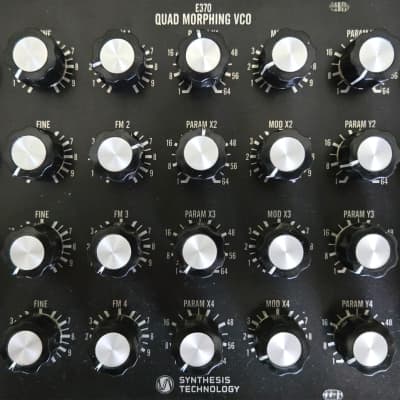

The E370 Quad Morphing VCO is a DSP-based, quad oscillator Eurorack module from Synthesis Technology. Using improved algorithms from the E350 Morphing Terrarium, the E340 Cloud Generator and the new E330 Multi-Mode VCO, the E370 is the most technically advanced Euro oscillator available. The four VCOs can be individually controlled, used in a set of two pairs, or ganged in “Unison”. A full-color TFT display is used in a ‘shallow depth’ menu system and can show each VCO’s output in real-time (oscilloscope mode). A micro-SD card slot allows users to load in their own custom wavetables and to save & load presets into the E370.

It uses a 16-pin shrouded header (standard Euro power, the cable is included). Final power requirement data will be available once the project is funded and the module is running the code and the TFT backlight current is determined. About 35% of the current off +12V is determined by the setting of TFT brightness.


  • 155 mA +12V
  • 40 mA -12V
  • 0 mA 5V
  • 48 mm deep
  • Ø 4.75 (8 Votes) Average Rating

This Module is currently available.

$879 Price in € submitted Dec 24th 2012, 13:40 by Drumdrumdrumdrum | last Change Nov 19th 2019, 12:04 by FG-Modular
