Frequency Shifter / Ring Modulator / Phase Shifter with wavetable modulation

The e560 is a triple-mode effects module: thru-zero frequency shifter, phaser and ring mod. what sets the e560 apart from other dsp effect modules is the unique carrier wave morphing feature. traditional frequency shifters and phasers use sine waves as the carrier/modulator, but the e560 has 8 different carrier waves that can be continuously cross-faded to create never-before heard soundscapes. the 8 carriers are specifically selected to give the widest sonic palette, from simple frequency shifts to 64-note ‘pattern sequences' to extreme harmonic content.

Three Modes of Operation:

SHIFT

A frequency shifter that can shift thru-zero with 2 simultaneous outputs (down and up). like traditional frequency shifters, a sine carrier will generate a smooth shift but the e560’s 7 other waves will generate a vast array of harmonic content and even patterns of evolving timbral shift.
Carrier waveforms: sine, triangle, square, saw, 16-point random phase, 64-point random phase, cross-modulated triangle/pulse and 3x sine
Frequency Shift Range: 0hz to +-3000hz

RM

A standard ring modulator (4-quadrant multiplying vca) with a twist: the 2 outputs are always forced into quadrature (90 degree phase shift). The 8 carriers can produce everything from tremolo effects to gating to high degrees of distortion.

PHASE

This is an e560 exclusive mode. the audio input is applied to an 8-stage all-pass network. the 2 audio outputs are in quadrature, but in turn phase shifted from 0 to 360 degrees relative to the input. not only that, the ‘vector' the phase shift follows is the data in the carrier wavetable. The phase shifting can be linear (saw wave), traditional (triangle) or bouncing all over the place (64-random phase waveform).

Not only do you have full control over the effect, but also the wet/dry mix and applying either positive or phase-inverted (negative) feedback) this
introduces peaking at certain harmonics or cancellation of those harmonics. applying a slow lfo to the feedback cv can produce a wide range of constantly changing spectral content.

There are 4 cvs available to control the e560 in real-time. all 4 of the panel controls have a corresponding cv input, so that you can turn all 4 knobs
at once by applying 4 cvs.

Frequency shift range: 0hz to +-3000hz carrier waveforms: sine, triangle, square, saw, 16-point random phase, 64-point random phase, cross-modulated triangle/pulse and 3x sine

E560 User Manual

http://synthtech.com/eurorack/E560/

  • 90 mA +12V
  • 20 mA -12V
  • ? mA 5V
  • 33 mm deep
  • Ø 4.18 (38 Votes) Average Rating

This Module is currently available.

$339 submitted Oct 13th 2012, 18:11 by ctrl-mod | last Change Aug 16th, 12:01 by dysonant

Date Region Description Price Seller

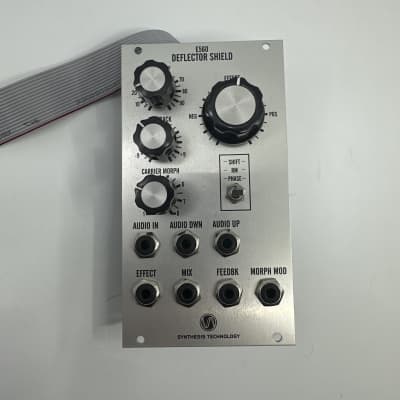

USAThe overall condition of this *Synthesis Technology E560 Deflector Shield* is...$240.00sceledra View
