E580 Resampling Mini-Delay

Audio-range Digital Delay with normal mode, and Tape and BBD emulation. Two outs for delay and "tap" outputs.

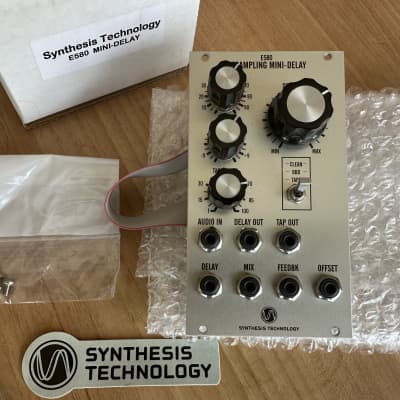

The Synthesis Technology E580 is a mono-in, mono-out audio digital delay that uses a unique 'resampling' algorithm to mimic analog BBD and tape delays. Analog delays have the property that when the delay time is changed, the pitch of the output changes. The E580 recreates this effect. There are 3 modes: clean, BBD, and Tape. The BBD mode adds a low-pass filter that is based on delay time as well as noise. The Tape mode adds non-linear distortion (tape saturation effect) and "wow & flutter" (motor speed variations). The E580 has two outputs: a main Delay and a Tap. The Tap is a percentage (0-100%) of the main Delay. All 4 panel controls are also under CV (-5V to +5V range).

Manual: http://synthtech.com/docs/E580_manual.pdf

http://synthtech.com/eurorack/E580/

  • 90 mA +12V
  • 20 mA -12V
  • ? mA 5V
  • 32 mm deep
  • Ø 4.20 (20 Votes) Average Rating

This Module is currently available.

$299 Price in € submitted Oct 13th 2012, 18:23 by ctrl-mod | last Change Jul 1st 2018, 19:08 by XRRR
