18 HP
25 mm deep
Current Draw
159 mA +12V
153 mA -12V
0 mA 5V
$140 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

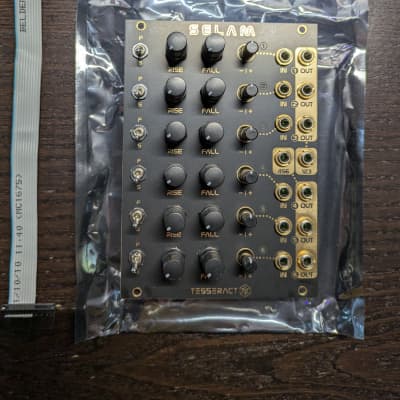

6x function generator with attenuverters

This modules is a 6 channels function generator,
each channel has an attenuverter to set the output gain,
there are 2 extra outputs with mixed signals (channels 1+2+3 and 4+5+6) for complex CV

-With no signal plugged in the input, channel will self-oscillate generating an LFO of ±4,8V
-With gate/trigger signals in the input, channel is an AR envelope generator
-With an stepped CV signal plugged in the input, the channel acts as a slew limiter

min attack/decay time:
0,3 milliseconds in fast mode
13 milliseconds in slow mode

max LFO length:
1" in fast mode
1'20" in slow mode

max attack/decay length:
13" in fast mode
3'00" in slow mode (approx)
