Dimensions
4 HP
25 mm deep
Current Draw
Module does not draw current
Price
$124 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

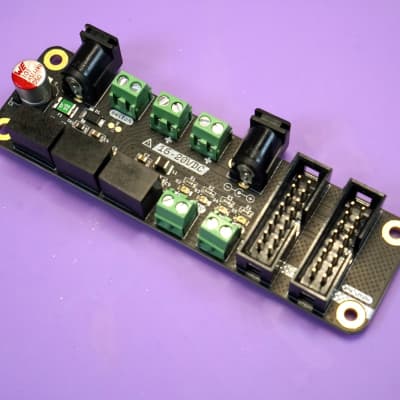

The tiny but mighty Eurorack power supply

Micronova is a miniature 100x30mm power supply with a big soul. It can provide up to 18W of power for your modules and multiple units can be easily daisy chained to power larger systems.

Despite being adorably small, Micronova provides lots of flexibility for custom case builds. It can be powered through an attached DC barrel jack, screw terminals, or through an optional front entry panel.

Micronova is equipped with two Eurorack power headers that can be expanded using a busboard or flying bus cable.

Micronova also has critical safety features including reverse polarity protection, a resettable polyfuse, and over-current shutdown.

https://winterbloom.com/shop/micronova
