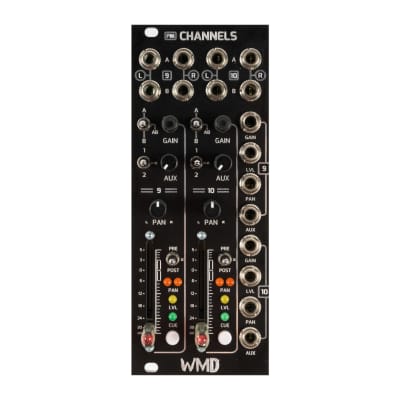

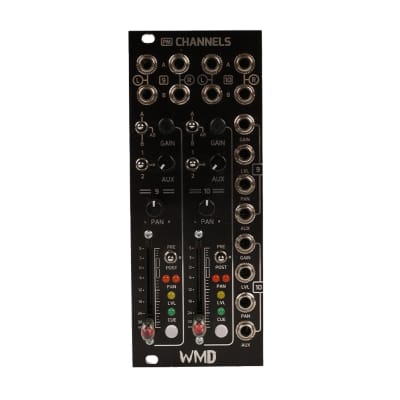

PM Channels Expander

Adds two more stereo channels to the WMD Performance Mixer.

  • Two sets of inputs for each stereo channel that can be selected or summed via the 3-way toggle switch.

  • More than 30dB of gain over each channel lets you use external sources such as consumer audio equipment, not just modular signals.

  • CV over Gain, Level, Pan, and the Aux send for both channels.

  • Channels can be muted with PM Mutes expander as well as included in the Cue Mix.

*Cannot be used independently of the Performance Mixer.

*Only one PM Channels may be added to a Performance Mixer

  • 120 mA +12V
  • 120 mA -12V
  • 0 mA 5V
  • 45 mm deep

This Module is currently available.

10 HP Expander
