2 HP
Current Draw
10 mA +12V
10 mA -12V
? mA 5V
$70 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

3 band equalizer(bw panel)

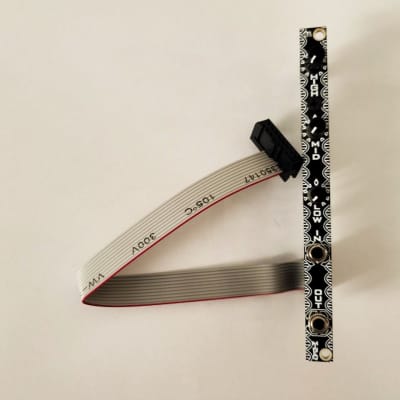

The Żłob Modular Mineq is a simple 3 band equalizer which boosts or cuts the low, mid, or high frequencies of your audio source. It passes sound relatively un-altered with each band set at noon. This is not a filter, and full cut settings of all bands will not fully eliminate your source.This EQ is AC coupled so it’s best for audio although it’s possible to eq cv with some interesting results. The Mineq is a 2hp version of the Żłob T.H. EQ.

Panel is aluminum pcb

Fully built modules, kits, and pcb/panels at
