Dimensions
14 HP
25 mm deep
Current Draw
135 mA +12V
31 mA -12V
? mA 5V
Price
$258 Price in €

No info about availability.

Specs are approved by the manufacturer

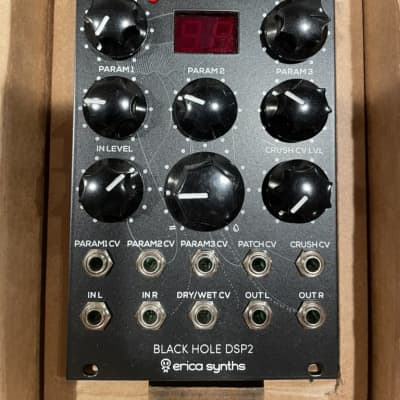

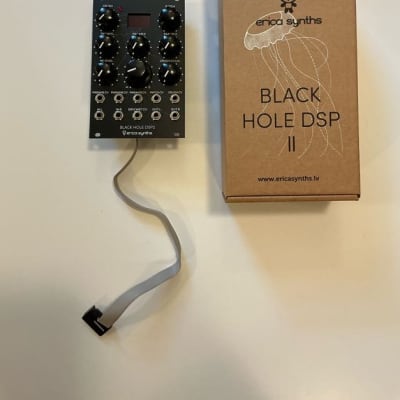

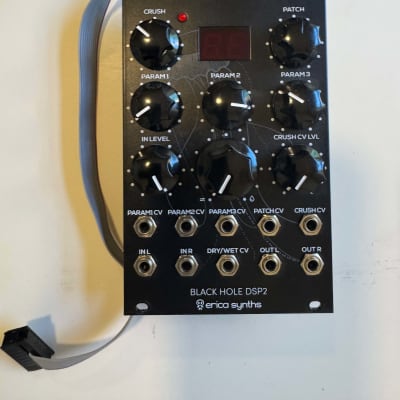

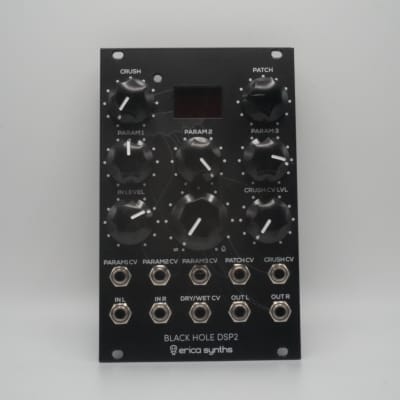

Stereo effects processor.

Module that tops up Erica Black series with mind blowing sound effects. Custom effects are designed in close co-operation of Erica Synths team rider KODEK and of Spin CAD software creator Gary Worsham.
Black Hole DSP as standard has 16 effects, each with 4 adjustable and CV controllable parameters and CV controlled effect select. Furthermore, external effect boards (sold sepertely), containing sets of effects, can adapt Erica Black Hole DSP to your way of creating music. Use the module together with Erica Black CV Expander for more delicate CV control over parameters.

Features:
● Spin FV-1 chip
● 16 unique custom effects
● Stereo INs and OUTs
● 3 manually and CV controllable parameters
● CV controlled effect select
● Manually and CV controllable clock rate reduction for noisy bitcrush
● 7 segment display for effect select indication
● Audio clipping LED
● Exchangeable external effect boards

Effects:
● Simple Delay
● Pitch Shift Delay
● Moving Lowpass Delay
● Highpass Delay
● Delay With Regenerating Feedback
● 6 Tap Delay With Resonating Feedback
● Glitch Delay
● Delay Into Reverb
● 4 Stage Reverb
● 2 Stage Reverb
● Room Reverb
● Delay With Highpass / Lowpass Filter
● Highpass Saturator & Reverb
● Granular delay
● Delay Into Flanger
● Chorus

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

http://www.ericasynths.lv/en/shop/eurorack-modules/by-series/black-series/black-hole-dsp/


Ø 4.18 (39 Votes) Average Rating
submitted Mar 23rd 2016, 09:42 by EricaSynths | last Change Jul 13th 2016, 16:21 by EricaSynths
