Dimensions
10 HP
35 mm deep
Current Draw
27 mA +12V
29 mA -12V
? mA 5V
Price
$179 Price in €

This Module is currently available.

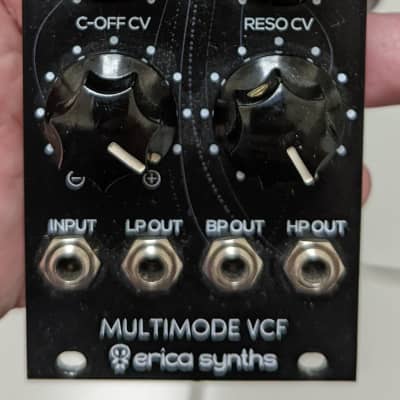

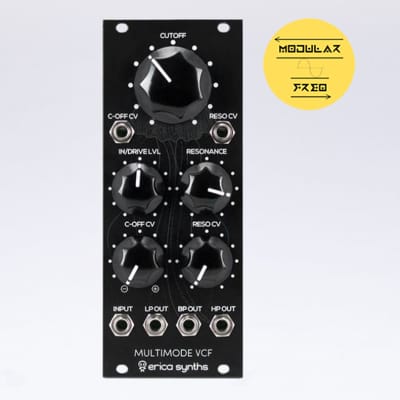

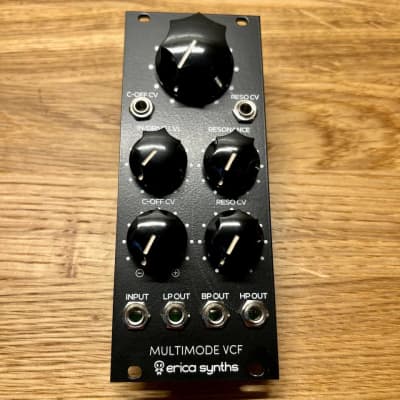

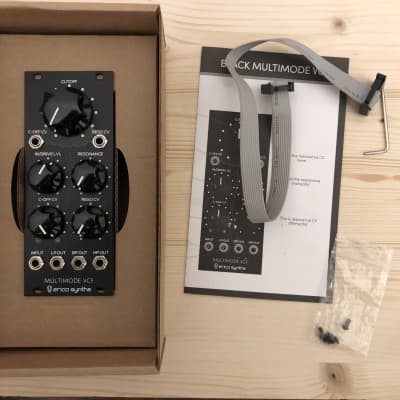

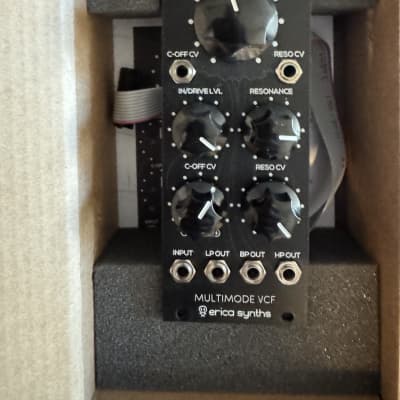

Black Multimode VCF

The Erica Black Multimode VCF has simultaneous HP, BP and LP outputs, CV control over cutoff and resonance for serious modular patches. The core of the VCF is highly stable, custom multimode VCF chip AS3320 (produced in Riga, btw). Bonus feature – unique, adjustable germanium diode overdrive circuit on the VCF input.

Features:
●Simultaneous HP, BP and LP outputs
●CV control over Cutoff and Resonance
●Self-oscillation
●Cutoff CV level attenuverter
●Adjustable germanium diode overdrive
●Skiff-friendly design

http://www.ericasynths.lv/en/shop/eurorack-modules/by-series/black-series/black-multimode-vcf/


Ø 4.75 (4 Votes) Average Rating
submitted Sep 20th 2017, 07:34 by EricaSynths | last Change Jun 2nd 2020, 16:17 by motorhead412

11 Users are observing this

USA

Mission SynthsThree Wave MusicSynthcubeControl VoltageControlNoisebugPerfect CircuitPatchwerksDetroit Modular

Canada

Cicada SoundMoog AudioNightlife ElectronicsRhythmiqxTechnoSynth instruments

Australia

Found Sound

Japan

Clockface Modular

New Zealand

Synthesizer New Zealand

These merchants probably sell this module. Huh?
