Many-in-1 multifunction module

The Disting is a many-in-1 multifunction module, offering a variety of CV and audio processes, including a selection of oscillators (LFOs/VCOs). All algorithms have two high-precision inputs and outputs, and a third control input, exposed on a front panel knob and a CV input.

mk 3

The disting mk3 was introduced in November 2015. The main differences compared to the original disting are:

Smaller - now 42mm deep (from 53mm)
Over 50% less power consumption - now 70mA combined draw (from 148mA)
User-updatable code - via Micro SD card
More algorithms - no longer limited to 16
More functionality - new encoder and push buttons give more control options

New algorithms shipping with the disting mk3 include a voltage controlled delay, a tape delay, and a resonator/drum synthesizer. Many existing algorithms have been enhanced - with extra parameters, manual tap tempo (for the clockable LFO and delay modes), and a ‘knob recorder’ function.

Specifications

The disting mk3's specifications are as follows:

Panel width: 4HP
Module depth: 42mm

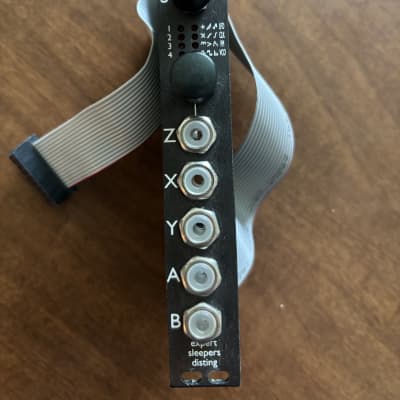

X & Y inputs, A & B outputs
    Sample rate: 75kHz
    ADC: 24 bit, THD+N -93dB, Dynamic range 99dB, SNR 99dB
    DAC: 24 bit, THD+N -94dB, Dynamic range 105dB, SNR 104dB
Z input sample rate: 75kHz
CPU: Microchip PIC32MX at up to 50MHz
Current draw: 50mA on the +12V rail, 20mA on the -12V rail (70mA total)

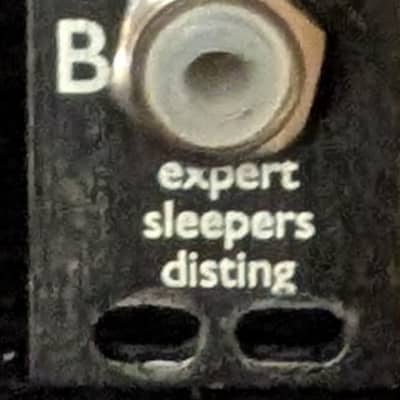

The front panel is drilled for both Doepfer and Analogue Systems mounting holes (using a 'slot' rather than a single round hole). The power connector is a Doepfer standard 10 way IDC, with -12V furthest from the top of the board.

http://expert-sleepers.co.uk/distingmk3.html

  • 50 mA +12V
  • 20 mA -12V
  • 0 mA 5V
  • 42 mm deep
  • Ø 4.39 (66 Votes) Average Rating

This Module is currently available.

$179 submitted Nov 18th 2015, 12:47 by os | last Change Yesterday, 00:46 by helix
