Dimensions
8 HP
50 mm deep
Current Draw
198 mA +12V
52 mA -12V
0 mA 5V
Price
$475 Price in €

This Module is currently available.

USB Audio Interface

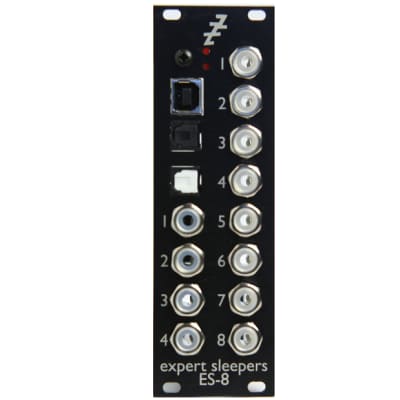

The ES-8 is a USB 2.0 class-compliant audio interface in a Eurorack module, with DC-coupled inputs and outputs that can be used for both CVs and audio. As such it is directly compatible with all popular computer-based CV generation software (e.g. Silent Way, Max/MSP, Bitwig Studio, Reaktor, CV Toolkit, etc.) as well as audio and CV processing iOS apps.

The ES-8 also has ADAT inputs & outputs. This could be used for example to expand the output count via an Expert Sleepers ES-3, or to connect a traditional audio interface to add, say, mic preamps or 1/4" line outputs.

  • USB socket: Type B
  • Driver support: class-compliant USB 2.0 (No driver required for macOS/iOS/Linux - Windows ASIO driver available)
  • Channel count: 12 in, 16 out
  • Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Output connections: 8x 3.5mm jacks, DC-coupled
  • Maximum output voltage: approximately ±10V DC
  • Analogue inputs: 4x 3.5mm jacks, DC-coupled
  • Input voltage range: approximately ±10V
  • Digital I/O: 1x ADAT input, 1x ADAT output
  • Expansion headers: 1 for ES-5, 1 for ES-6

The front panel is drilled for both Doepfer and Analogue Systems mounting holes (using a 'slot' rather than a single round hole). The power connector is a Doepfer standard 16 way IDC, with -12V furthest from the top of the board.

http://www.expert-sleepers.co.uk/es8.html
