8 Channel Random Voltage Source with Expansion Options

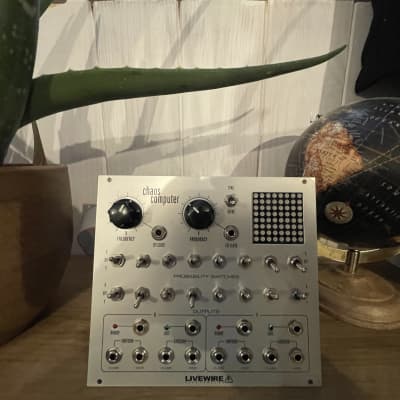

The Chaos Computer generates 8 simultaneous random stepped voltages.
There are 4 outputs from the X Random Generator and 4 outputs from the Y Random Generator.
The X and Y Random Generators receive their instructions from 16 PROBABILITY input switches on the control panel.
The rate and amount of change is fed back via a 64 LED Matrix Display.

The X and Y Random Generators have independent internal clocks, independent EXTERNAL clock inputs, with a SYNC / ASYNC option.
Each of the Random Generators 4 stepped voltage outputs are further subdivided by 2 UNIFORM and 2 GAUSSIAN stepping modes.

The Chaos Computer was designed to be the engine of an entire system of voltage generation and processiong via expansion modules.
Expansion module development is underway and releases are expected to begin by late 2013.

http://www.monorocket.com/blog/eurorack/

  • 120 mA +12V
  • 20 mA -12V
  • 0 mA 5V
  • Ø 5.00 (3 Votes) Average Rating

No info about availability.

$600
28 HP Random
submitted Jun 26th 2013, 14:02 by inputoutput | last Change Jun 28th, 23:16 by LearningModular
