Dimensions
8 HP
25 mm deep
Current Draw
10 mA +12V
0 mA -12V
0 mA 5V
Price
$173 Price in €

This Module is currently available.

Specs are approved by the manufacturer

1965 Sequence Commander

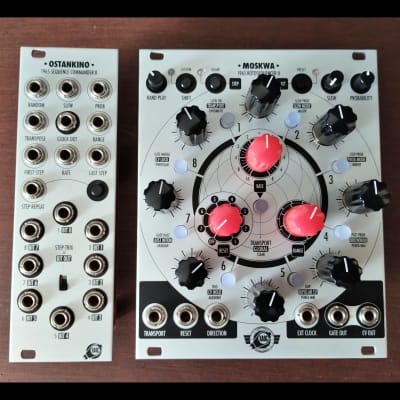

Ostankino II is an expander for the Moskwa II sequencer module. It greatly augments Moskwa II’s connectivity giving the user the ability to use CV to change most parameters.

Ostankino II also adds quite a few outputs including access to the Leibniz Binary Subsystem.

• Voltage control over Moskwa II parameters:
• Random, slew, probability, transposition, range, first and last step inputs
• Step repeat CV input and button
• Internal clock output
• Individual gate/trigger outputs for each sequence step
• Bit outputs for each sequence step, fixed connection with Leibniz Binary Subsystem

http://xaocdevices.com/main/ostankino2/
