Dimensions
6 HP
30 mm deep
Current Draw
30 mA +12V
20 mA -12V
0 mA 5V
Price
$105 Price in €

This Module is currently available.

Specs are approved by the manufacturer

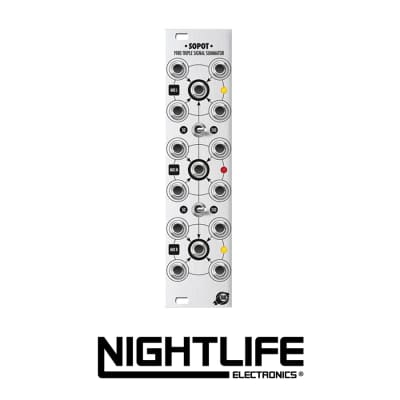

1980 Triple Signal Summator

Sopot is a compact utility module handy when the need arises to sum multiple stereo and mono sound sources (up to four signals for each section). It is a triple summing mixer featuring three signal adding sections with the middle one optionally fed to the top and bottom ones. The contribution of the middle section is switchable between 0%, 50%, and 100%. Each of the summing sections is built with high quality audio opamps and features a soft clipping circuit for nice saturation. Gain can be optionally reduced to -12dB in order to allow summing of hot signals.


Ø 5.00 (2 Votes) Average Rating
submitted May 9th, 16:27 by ibsen | last Change May 9th, 16:30 by ibsen

2 Users are observing this
